Description:

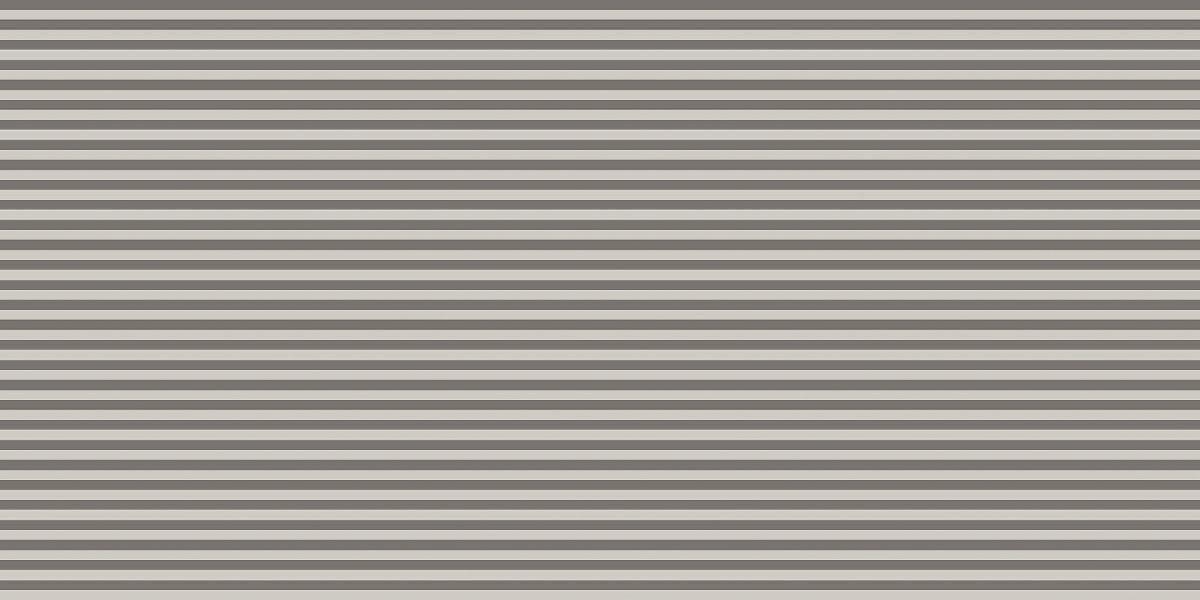

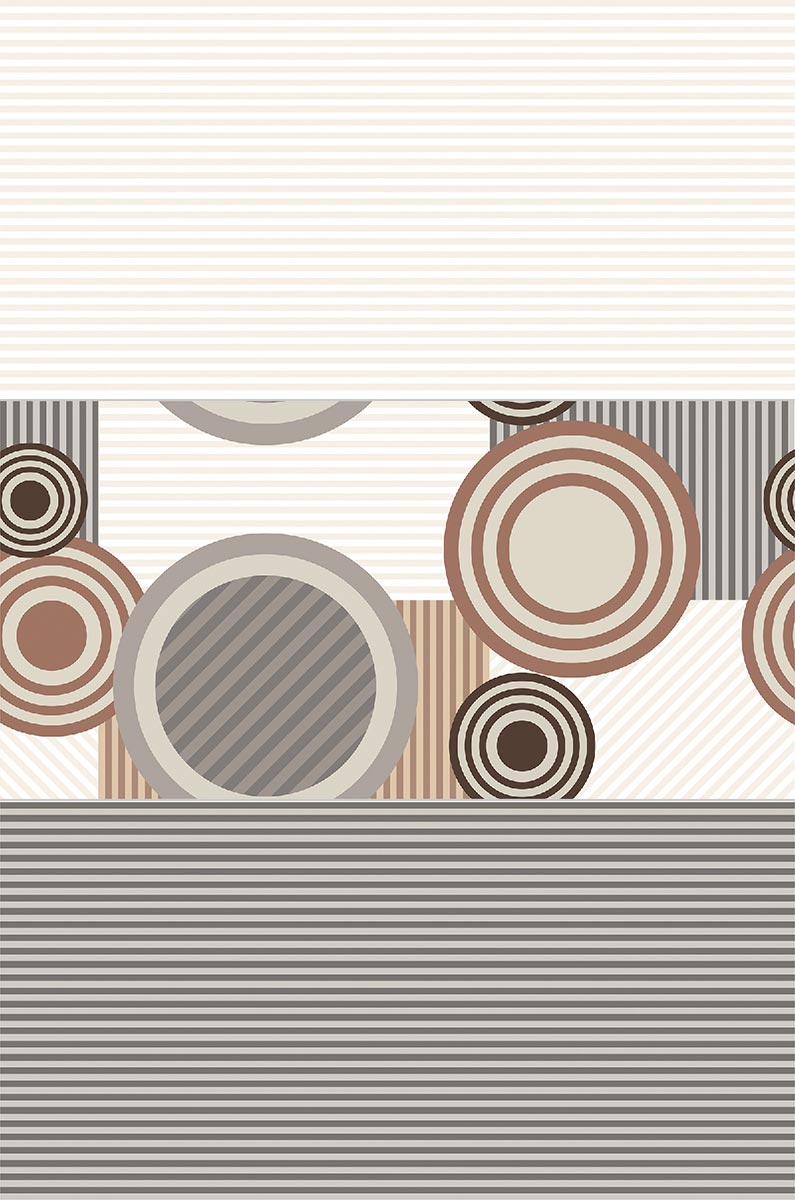

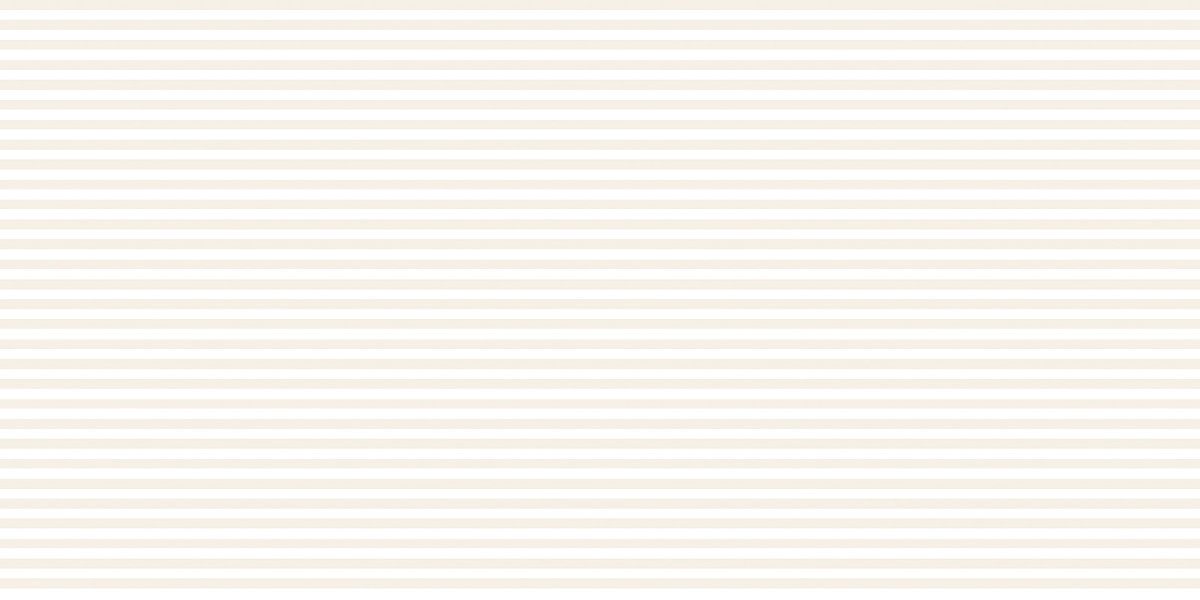

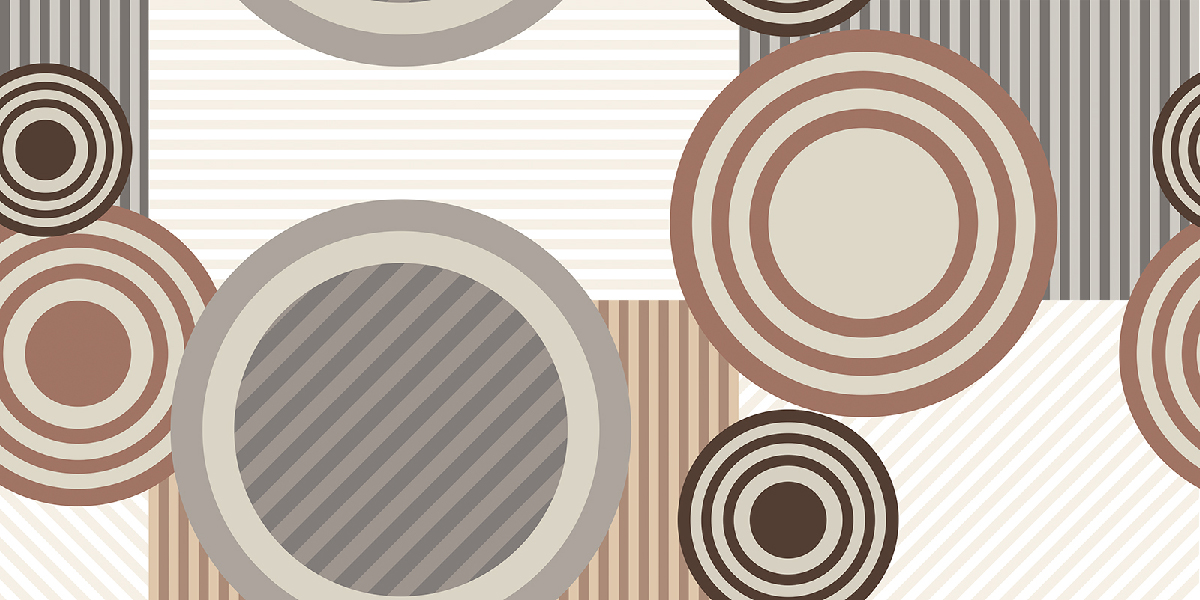

Size Look Shape Surface Colour Type
30x60 cm Pattern Rectangle Glossy Brown White Body

Packing Details:

Name of Product Size in C.M Pices/Box Kgs/Box Boxes/Pallet Sqm/Boxe Sqm/Pallet Sft/Box Sft/Pallet Kgs/Pallet
WH-36209 30x60 8 25.00 48 1.44 69.12 15.49 743.73 1200.00

Technical Specifications:

TEST DESCRIPTION Test Method (EN 14411:2016, ISO 10545) BDS ISO 13006: 2015 Standard Wall Tiles
Deviation in Length & Width EN 98 /ISO 10545-2 ±0.5% ± 0.4 %
Thickness EN 98 /ISO 10545-2 ±10% ± 5.0 %
Straightness of side EN 98 /ISO 10545-2 ±10% ± 0.2 %
Rectangulary EN 98 /ISO 10545-2 ±0.5% ± 0.2 %
Surface Flatness (warpage) EN 98 /ISO 10545-2 ±0.5% ± 0.3 %
Water Absorption EN 99 /ISO 10545-3 Group Blll, Eb ≥ 10%, when exceeds 20.5, this shall be indicated by the manufacturer, individual min. value 9%. ≤ 15.0 % ± 2.0 %
Modulus Of Rupture EN 100 /ISO 10545-4 Average min. 12 N/mm², for thickness <7.5 mm, Average min 15 N/mm², for thickness >7.5 mm. ≥ 17N/mm²
Scratch hardness of surface(Mohs) EN 101 ≥ 3 ≥ 3
Coefficient of linear Thermal Expansion from ambient temp. to 100°C EN 103 /ISO 10545-8 Max 9X10¯⁶ x K¯¹ Max 8X10¯⁶ x K¯¹
Resistance to Thermal Shock EN 104 /ISO 10545-9 10 cycle min. Passed 10 cycle.
Moisture Expansion in mm/m EN 155 /ISO 10545-10 0.04 0.02
Crazing Resistance(Glazed) EN 105 /ISO 10545-11 4 cycle@7.5 bar min Passed 4 cycle.
Frost Resistance EN 202 /ISO 10545-12 No Damage No Damage
Chemical Resistance(Glazed) EN 122 /ISO 10545-13 Min class AA Min class AA
Staining Resistance(Glazed) EN 122 /ISO 10545-14 Min class 1 Min class 1
Color Resistance to Light "Exposing 60 Watt (20 nos) Tungsten Lamp for 24 Hours" As Per Manufacturer "No change in brightness or clolor occurred."
Visual Inspection --- Min 95% tiles will be free from visual defects. Min 95% tiles will be free from visual defects.
