Description:

Size Look Shape Surface Colour Type

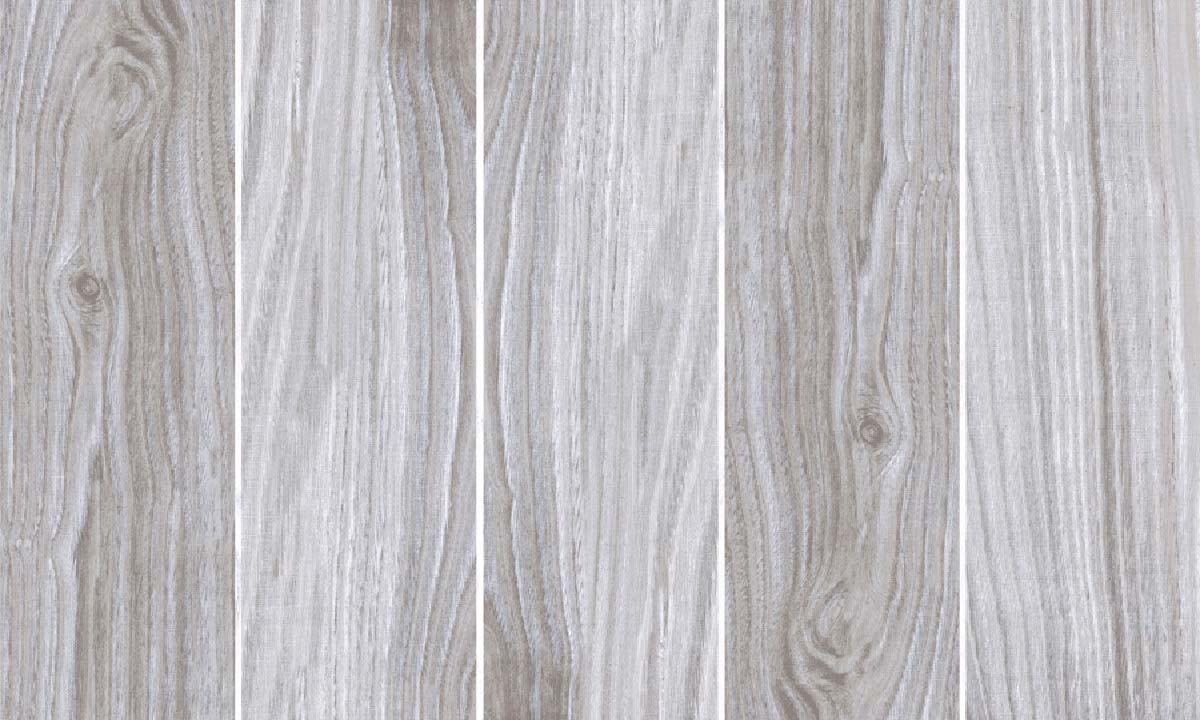

30x50 cm Wooden Rectangle Glossy Grey Red Body

Packing Details:

Name of Product Size in C.M Pices/Box Kgs/Box Boxes/Pallet Sqm/Boxe Sqm/Pallet Sft/Box Sft/Pallet Kgs/Pallet
WDG-3513 30x50 10 25 48 1.50 72 16.14 774.72 1200

Technical Specification

TEST DESCRIPTION TEST METHOD INTERNATIONAL
STANDARD
MIR STANDARD AS TESTED BY BUET LABORATORIES
WALL GROUP (BIII) FLOOR GROUP (BII a) HOMOGENEOUS GROUP (B I)
DEVIATION IN LENGTH & WIDTH EN 98, EN ISO 10545-2 ± 0.5 % ± 0.4 % ± 0.4 % ± 0.4 %
THICKNESS EN 98, EN ISO 10545-2 ± 5 % ± 5.0 % ± 3.0 % ± 3.0 %
STRAIGHTNESS OF SIDE EN 98, EN ISO 10545-2 ± 0.3 % ± 0.2 % ± 0.2 % ± 0.2 %
RECTANGULARITY EN 98, EN ISO 10545-2 ± 0.5% ± 0.2 % ± 0.2 % ± 0.2 %
SURFACE FLATNESS (WARPAGE) EN 98, EN ISO 10545-2 ± 0.5 % ± 0.3 % ± 0.2t % ± 0.2 %
WATER ABSORPTION EN 99 /ISO 10545-3 WALL AS PER GROUP BIII (10%-20%) ≤ 15.0 % ± 2.0 % ---- ----
SCRATCH HARDNESS OF SURFACE (MOHS) EN 101 FLOOR UNGLAZED-6 GLAZE-5 WALL GLAZED-3 PROCELAIN ---- ---- ---- 3 (MOHS’ SCALE) ---- ---- ---- ---- 5 (MOHS’ SCALE) ---- ---- ≥ 6 ---- ---- ---- ---- ---- ≥ 6
RESISTANCE OF DEEP ABRASION (MM3) EN 154/ISO 10545-6 AS PER MANUFACTURER NO DAMAGE 175 MAX NO DAMAGE
RESISTANCE TO ABRASION OF GLAZED TILES (CLASS I -V) EN 154/ISO 10545-7 AS PER MANUFACTURER NO DAMAGE CLASS- 3.5 NO DAMAGE
COEFFICIENT OF LINEAR THERMAL EXPANSION FROM AMBIENT TEMP. TO 100°C EN 103 /ISO 10545-8 MAX 9X10¯ x K¯¹ 9 MAX MAX 7.5X10¯ x K¯¹ MAX 7.5X10¯ x K¯¹
RESISTANCE TO THERMAL SHOCK EN 104 /ISO 10545-9 10 CYCLE MIN. PASSED 10 CYCLE. PASSED 10 CYCLE. PASSED 10 CYCLE.
FROST RESISTANCE EN 98, EN ISO 10545-12 NO DAMAGE NO DAMAGE NO DAMAGE NO DAMAGE
CHEMICAL RESISTANCE(GLAZED) EN 122 /ISO 10545-13 MIN CLASS AA MIN CLASS AA MIN CLASS AA MIN CLASS AA
STAINING RESISTANCE(GLAZED) EN 122 /ISO 10545-14 MIN CLASS 1 MIN CLASS 1 MIN CLASS 1 MIN CLASS 1
COLOR RESISTANCE TO LIGHT EXPOSING 60 WATT (20 NOS) TUNGSTEN LAMP FOR 24 HOURS AS PER MANUFACTURER NO CHANGE IN BRIGHTNESS OR COLOR OCCURRED NO CHANGE IN BRIGHTNESS OR COLOR OCCURRED NO CHANGE IN BRIGHTNESS OR COLOR OCCURRED
VISUAL INSPECTION --- MIN 95% TILES WILL BE FREE FROM VISUAL DEFECTS. MIN 95% TILES WILL BE FREE FROM VISUAL DEFECTS. MIN 95% TILES WILL BE FREE FROM VISUAL DEFECTS. MIN 95% TILES WILL BE FREE FROM VISUAL DEFECTS.
