Description:

Size Look Shape Surface Colour Type

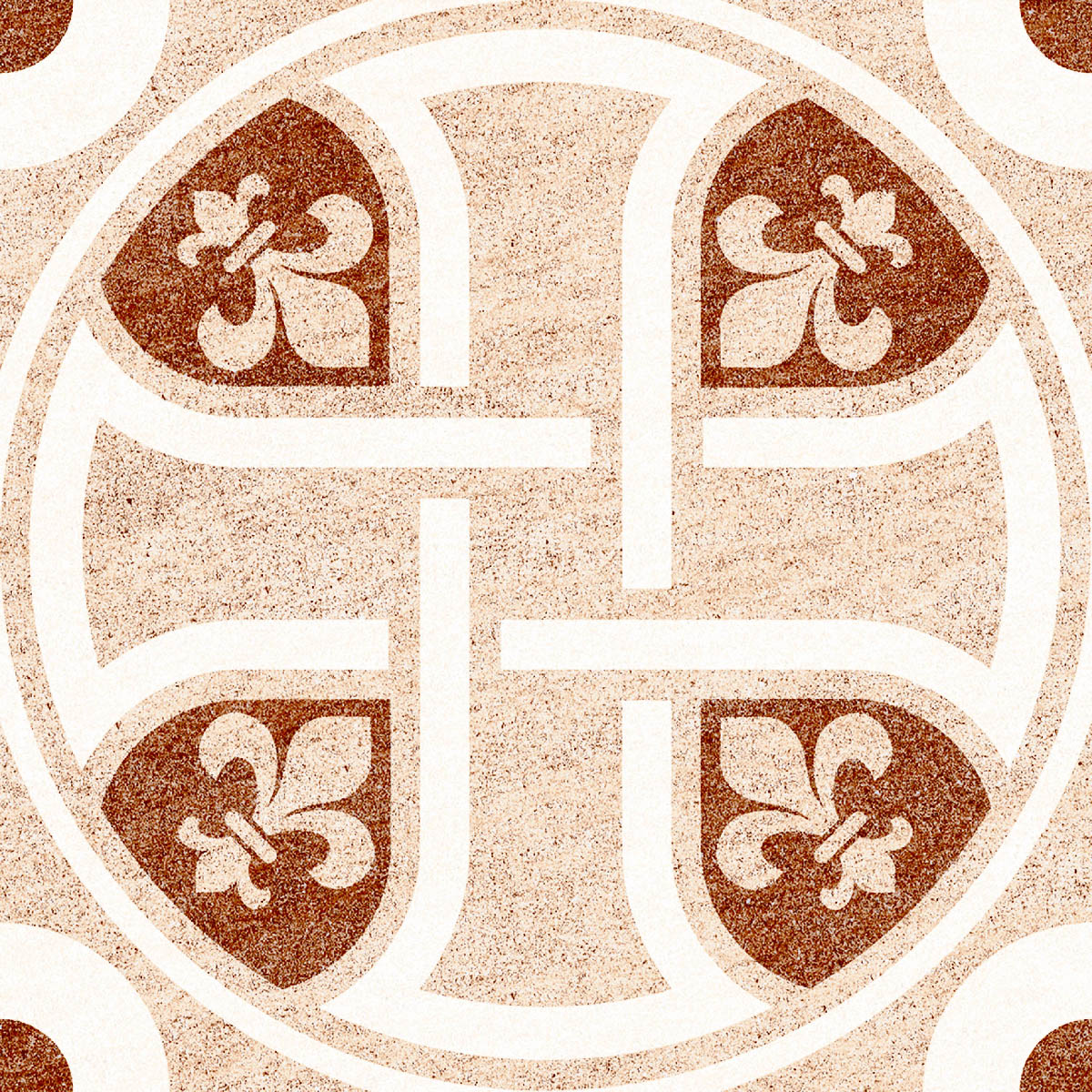

40x40 cm Geometric Square Sugar Brown Porcelain

Packing Details:

Name of Product Size in C.M Pices/Box Kgs/Box Boxes/Pallet Sqm/Boxe Sqm/Pallet Sft/Box Sft/Pallet Kgs/Pallet
PP-4410 SG 40x40 9 28.00 48 1.44 69.12 15.49 743.73 1344.00

Technical Specifications:

TEST DESCRIPTION Test Method (EN 14411:2016, ISO 10545) BDS ISO 13006: 2015 Standard Typical Value of Mir Porcelain Floor
Deviation in Length & Width EN 98 /ISO 10545-2 ±0.5% ± 0.4 %
Thickness EN 98 /ISO 10545-2 ± 5 % ± 3.0 %
Straightness of side EN 98 /ISO 10545-2 ± 0.3 % ± 0.2 %
Rectangulary EN 98 /ISO 10545-2 ±0.5% ± 0.2 %
Surface Flatness (warpage) EN 98 /ISO 10545-2 ±0.5% ± 0.2 %
Water Absorption EN 99 /ISO 10545-3 Group Blₐ, E ≤ 0.5% Group Blₐ, E ≤ 0.05
Modulus Of Rupture EN 100 /ISO 10545-4 min. 35 N/mm², individual min 32 min. 45 N/mm²
Scratch hardness of surface(Mohs) EN 101 ≥ 5 ≥ 6
Coefficient of linear Thermal Expansion from ambient temp. to 100°C EN 103 /ISO 10545-8 Max 9X10¯⁶ x K¯¹ Max 7.5X10¯⁶ x K¯¹
Resistance to Thermal Shock EN 104 /ISO 10545-9 10 cycle min. Passed 10 cycle.
Moisture Expansion in mm/m EN 155 /ISO 10545-10 N.A. N.A.
Crazing Resistance(Glazed) EN 105 /ISO 10545-11 4 cycle@7.5 bar min Passed 4 cycle.
Frost Resistance EN 202 /ISO 10545-12 No Damage No Damage
Chemical Resistance(Glazed) EN 122 /ISO 10545-13 Min class AA Min class AA
Staining Resistance(Glazed) EN 122 /ISO 10545-14 Min class 1 Min class 1
Color Resistance to Light Exposing 60 Watt (20 nos) Tungsten Lamp for 24 Hours As Per Manufacturer No change in brightness or clolor occurred
Visual Inspection --- Min 95% tiles will be free from visual defects. Min 95% tiles will be free from visual defects.
